Our Machines

Eight machines. One production philosophy.

From a 5,000-bricks-a-shift entry point to a 2-acre fully automatic plant — every Buildwell machine is engineered from the same principle: uninterrupted flow, from raw material to green brick.

Interactive Tool

Find My Plant Capacity

Tell us your target daily brick output and we'll match you to the right Buildwell model — instantly.

10,000 / shift
Recommended Model

BW-117

32 HPTotal HP
10 HP, 3 PhMain Press
3500 SqmtLand Required
Enquire About This Model →
Full Product Line

Every model, every real spec.

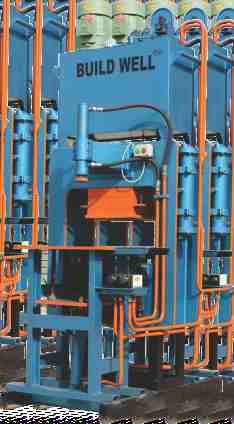

BW-212 (3IN1)BW-212 semi automatic machine

BW-212 (3in1)

Semi-Automatic · Entry-Level
Production Capacity5,000 bricks / shift
Main Press5 HP, 3 Ph
Total HP14 HP
Shed Size15' x 30' x 15' Height
Land Required2000 Sqmt
Labour2 Skilled, 8 Un-skilled
Enquire About BW-212 →

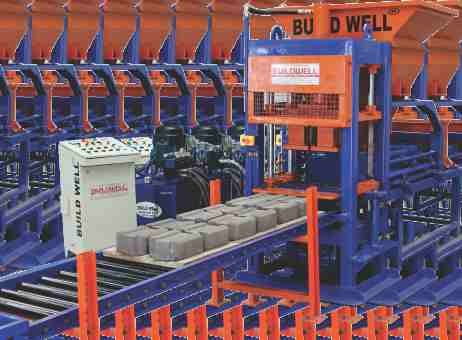

BW-118BW-118 machine

BW-118

6-Brick Mould
Production Capacity6,000 – 7,000 bricks / shift
Main Press10 HP, 3 Ph
Total HP21 HP
Shed Size15' x 30' x 15' Height
Land Required2000 Sqmt
Enquire About BW-118 →

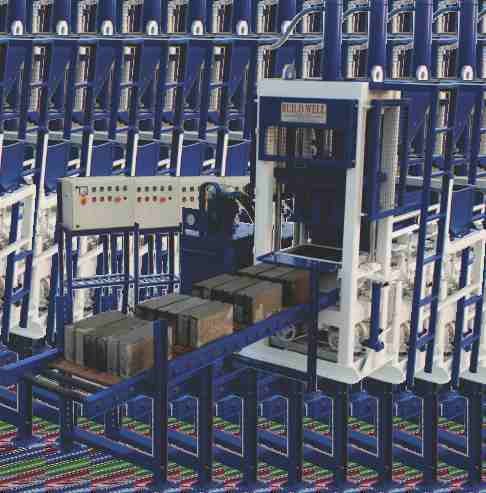

BW-125 / BW-113BW-125 hydraulic color paver press

BW-125 / BW-113

Hydraulic Colour Paver Press
FocusColour interlocking pavers
Press TypeHydraulic
Output RangeBW-18 – BW-24 paver shapes
Enquire About Paver Press →

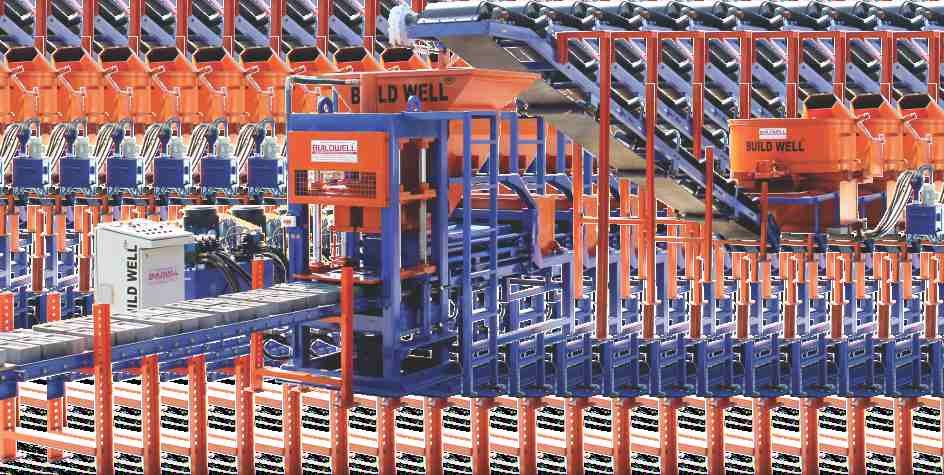

BW-117BW-117 fully automatic machine

BW-117

6 / 8 / 4-Brick Multi-Mould
Production Capacity10,000 bricks / shift
Main Press10 HP, 3 Ph
Total HP32 HP
Shed Size15' x 60' x 15' Height
Land Required3500 Sqmt
Labour2 Skilled, 10 Un-skilled
Enquire About BW-117 →

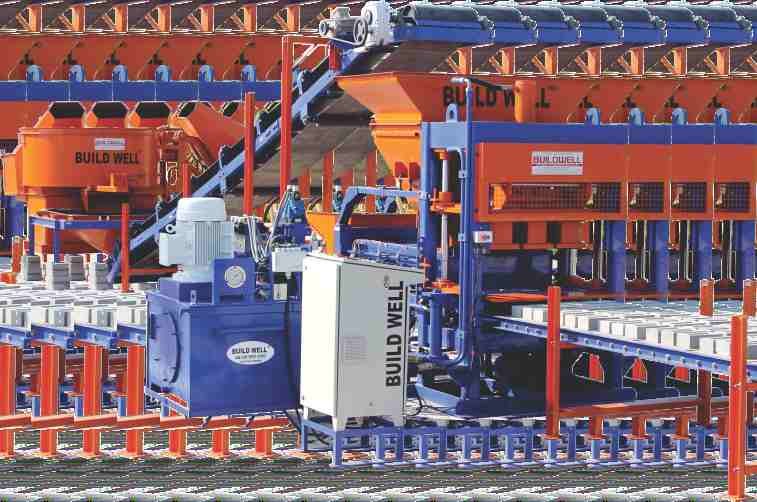

BW-120BW-120 machine, 9-brick mould

BW-120

9-Brick Mould
Production Capacity18,000 bricks / shift
Main Press15 HP, 3 Ph
Total HP47 HP
Shed Size20' x 60' x 15' Height
Land Required5500 Sqmt
Labour2 Skilled, 12 Un-skilled
Enquire About BW-120 →

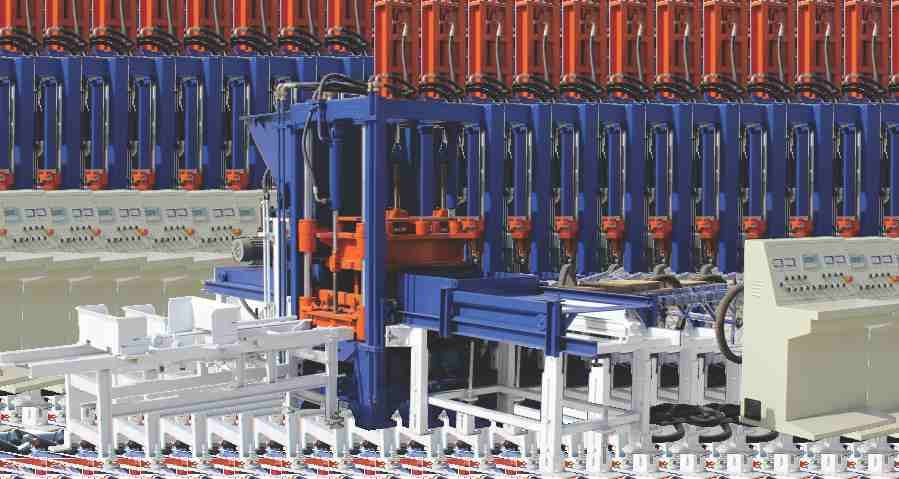

BW-119 (3-IN-1)BW-119 3-in-1 machine, bricks blocks and pavers

BW-119 (3-in-1)

Bricks + Blocks + Pavers Combined
Production Capacityup to 18,000 bricks / shift
Main Press10 HP, 3 Ph
Total HP45 HP
Land Required5000 Sqmt
Blocks3 pcs/mould · 4,500 pcs/shift
Paving Blocks10 pcs/mould · 15,000 pcs/shift
Enquire About BW-119 →

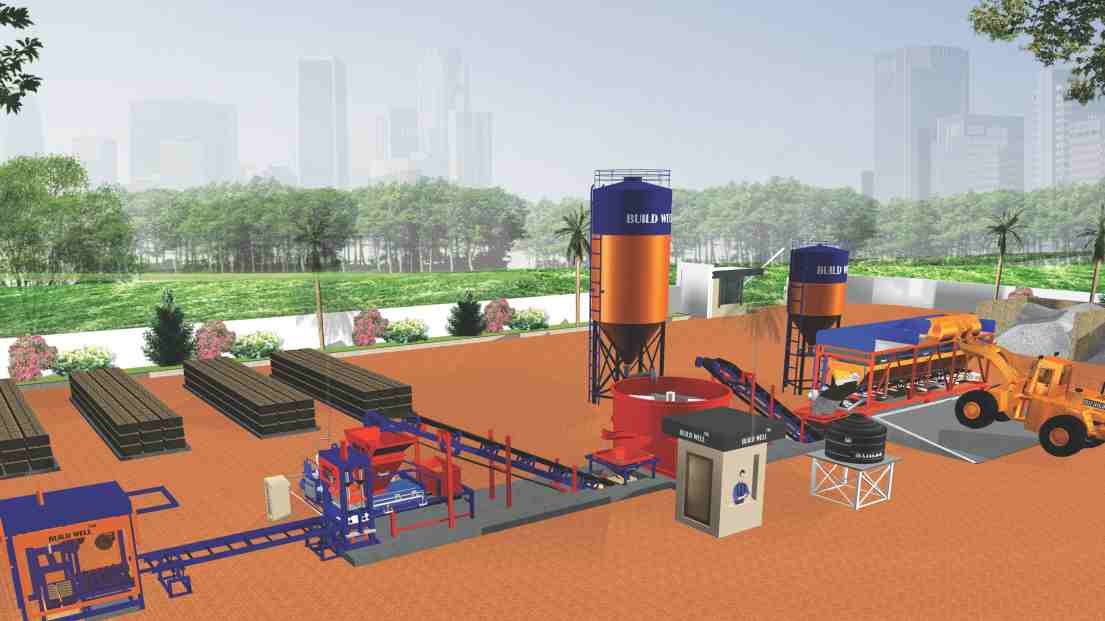

BW-130 · FLAGSHIPBW-130 fully automatic plant layout

BW-130

Fully Automatic Plant · Flagship
Production Capacity25,000 bricks / shift
Main Press20 HP, 3 Ph + 3 HP
Total HP60 HP
Shed Size50' x 100' x 15' Height
Land Required2 Acre
Labour2 Skilled, 12 Un-skilled
Enquire About BW-130 →

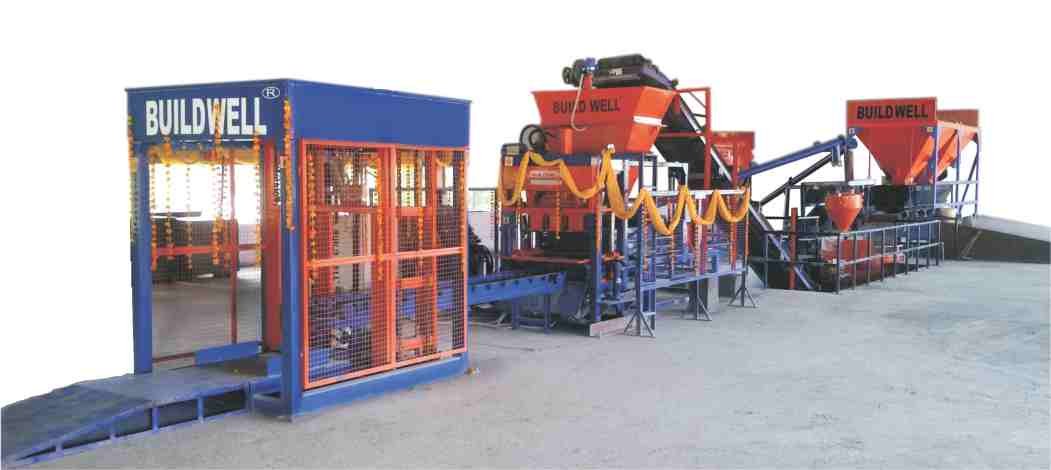

BW-4-16 (3IN1)BW-4-16 batching system with stacker

BW-4-16 (3in1)

Batching System with Stacker
Production Capacity23,000 bricks / 8-hr shift
Main Press10 HP, 3 Ph
Total HP69 HP
Land Required1–2 Acre
Blocks4 pcs/mould · 5,700 pcs/8-hr shift
Paving BlocksZig-Zag · 23,000 pcs/8-hr shift
Enquire About BW-4-16 →
Behind The Line

How a Buildwell plant is planned before it's built.

Every order begins with an engineering drawing — so your civil work, shed dimensions and machine erection are ready before the machine arrives.

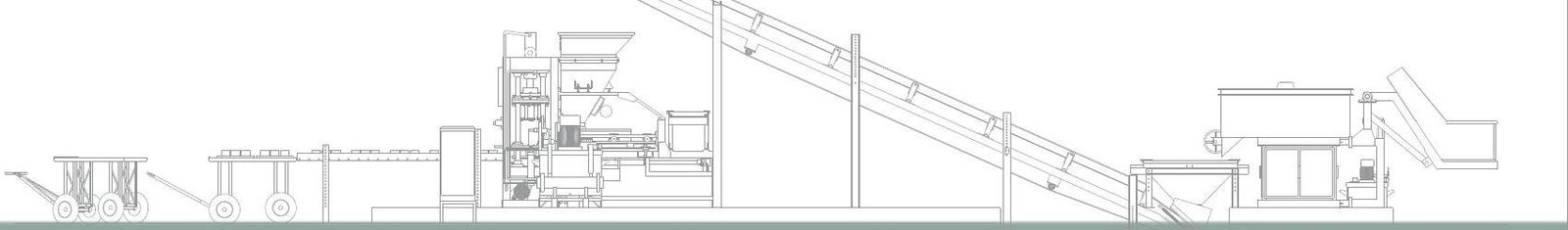

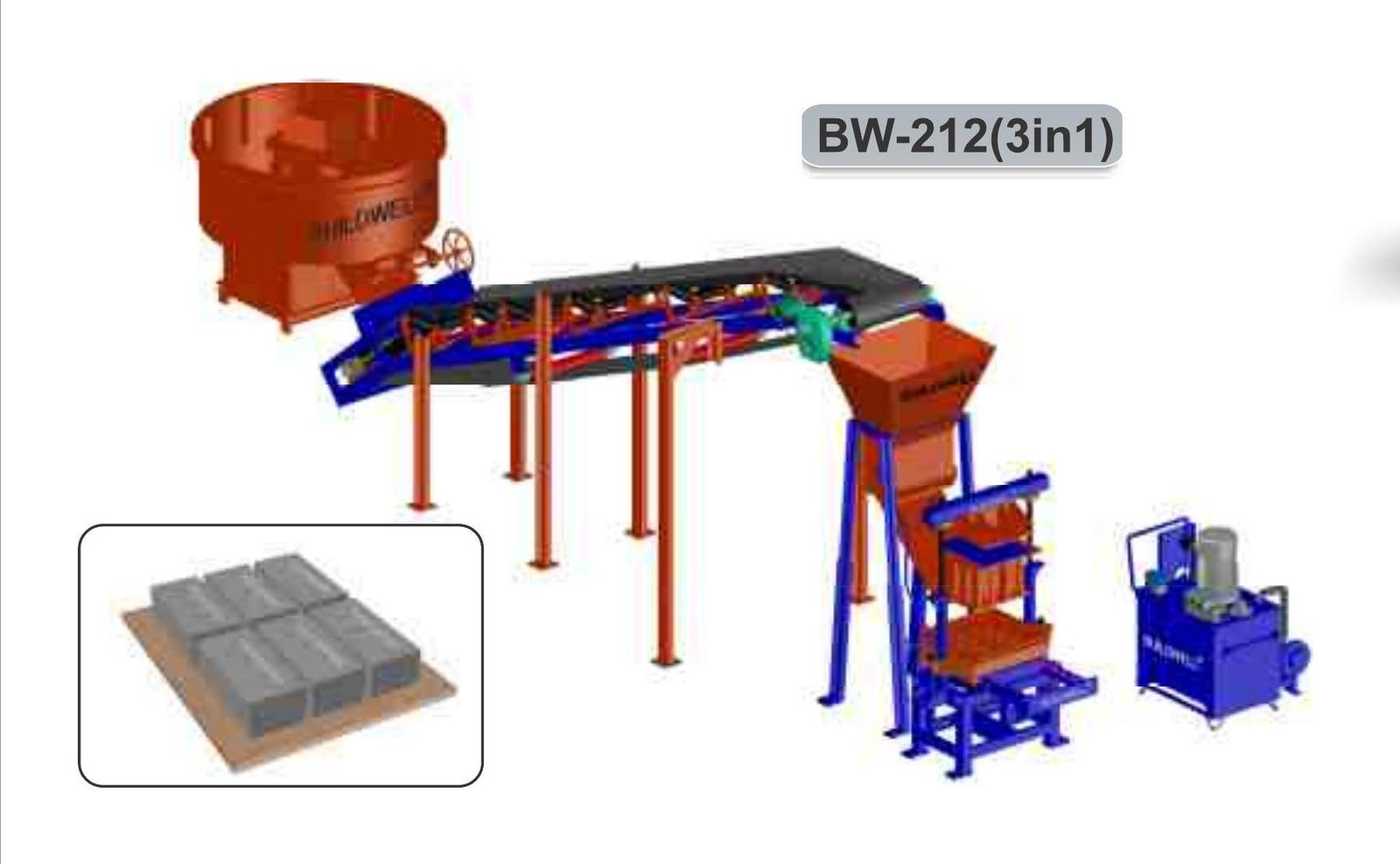

Plant 3D render 1 Plant 3D render 2 Plant 3D render 3 Machine line technical drawing BW-212 3in1 assembly illustration
